Proton ZOOM

Smallest HD ZOOM camera.

Variants​

ZOOM​

Reference: PCI-ZOOM

Size50x50x73mm
Weight234g
Voltage5-25V1
Power3.5W2
LensIntegrated 55-115° (motorized I/Z/F)3
Sensor8.8mm / 12 bits
CablesM-BNC & 6P Hirose
AudioExternal (1x3.5 stereo)4
Formatsup to 1080p/1080i 60fps

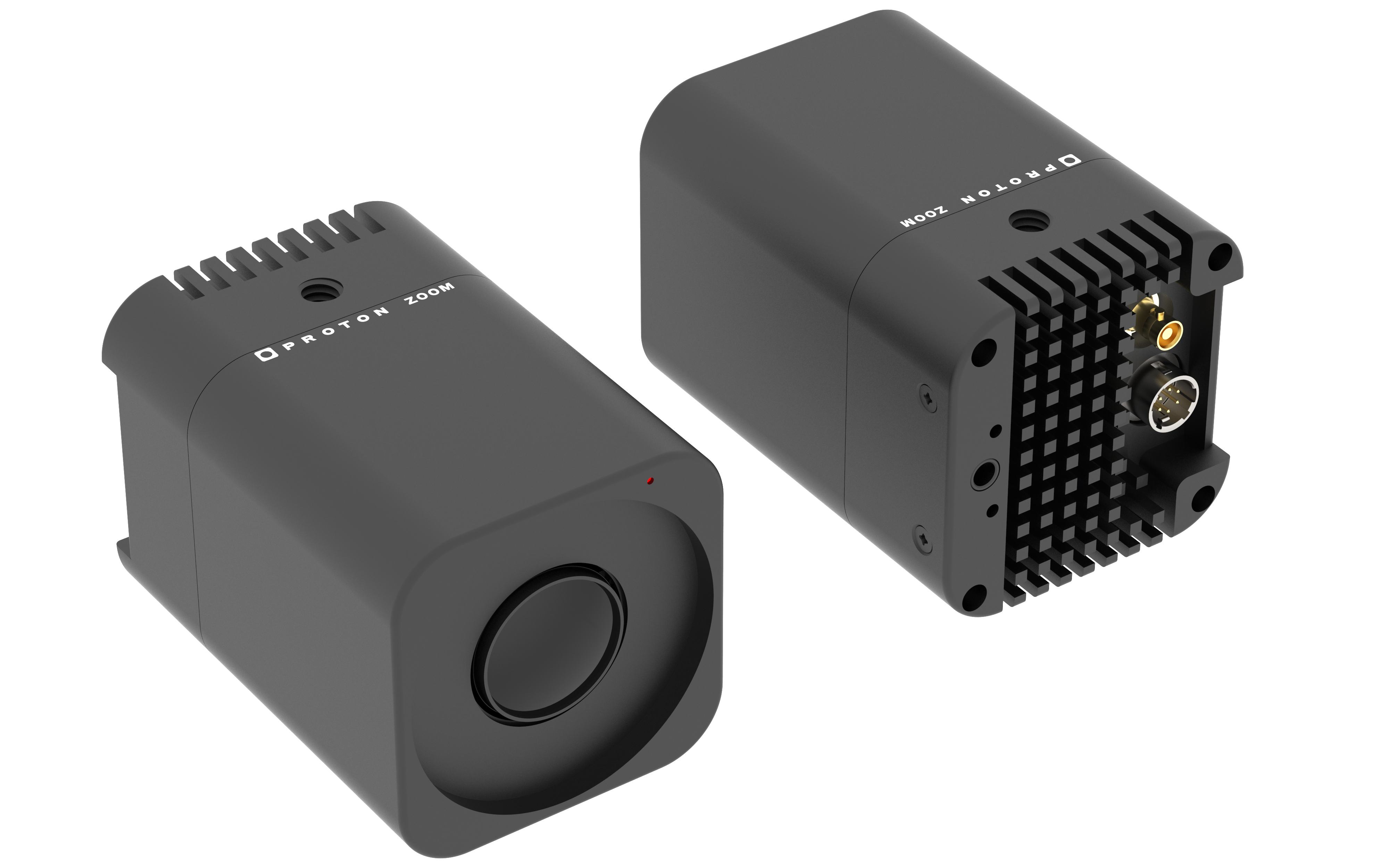

ZOOM CON​

Reference: PCI-ZOOM-CON — Connector version

SizeTBD
WeightTBD
ConnectorsHD-BNC & 6P Hirose (TBD)

All other specifications are identical to the standard ZOOM.

Downloads​

Manuals​

This page is an extract of these manuals, so make sure to check them out.

Packages​

ProductDownload linkPackage versionSOFT versionFPGA versionControl versionUpdater version
CAM/CAM CS/RAIN/FLEX/ZOOMdownload171.7.12.41.5.2.01.3.1.0
All versions
ProductDownload linkPackage versionSOFT versionFPGA versionControl versionUpdater version
CAM/CAM CS/RAIN/FLEX/ZOOMdownload11.1.01.2-1.0.1.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload2v1.1.1v1.2--
CAM/CAM CS/RAIN/FLEX/ZOOMdownload3v1.1.2v1.3--
CAM/CAM CS/RAIN/FLEX/ZOOMdownload4v1.2.0v1.5-1.2.0.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownload5v1.3.0v1.81.0.0.01.2.1.1
CAM/CAM CS/RAIN/FLEX/ZOOMdownload6v1.3.1v1.81.1.0.01.2.1.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownload7v1.3.2v1.91.1.1.01.2.2.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload8v1.4.0v1.121.2.0.01.2.2.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload9v1.4.1v1.121.2.0.01.2.2.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload10v1.4.2v1.121.2.0.01.2.4.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload11v1.5.0v1.151.3.2.01.2.5.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload12v1.5.1v1.151.4.2.01.2.7.1
CAM/CAM CS/RAIN/FLEX/ZOOMdownload131.6.02.11.4.3.01.2.7.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownload141.6.12.11.4.3.11.2.7.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownload151.7.02.41.5.0.01.2.9.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload161.7.12.41.5.1.11.3.0.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload171.7.12.41.5.2.01.3.1.0

See the firmware update page for upgrade instructions.

Footnotes​

  1. the camera HAS reverse polarity protection ↩

  2. 1080p60 cold camera ↩

  3. F1.5 at 115° and F2.4 at 55° ↩

  4. 48KHz, 24bits, 80dBA SNR ↩
