Proton CAM

Smallest HD mini camera.

Variants​

CAM​

Reference: PCI-CAM

Size28x28x23mm
Weight24.5g
Voltage4.5-25V1
Power2.5W2
LensS-mount
Sensor8.8mm / 12 bits
CablesM-BNC & 6P Hirose
AudioStereo mic (integrated)
Formatsup to 1080p/1080i 60fps

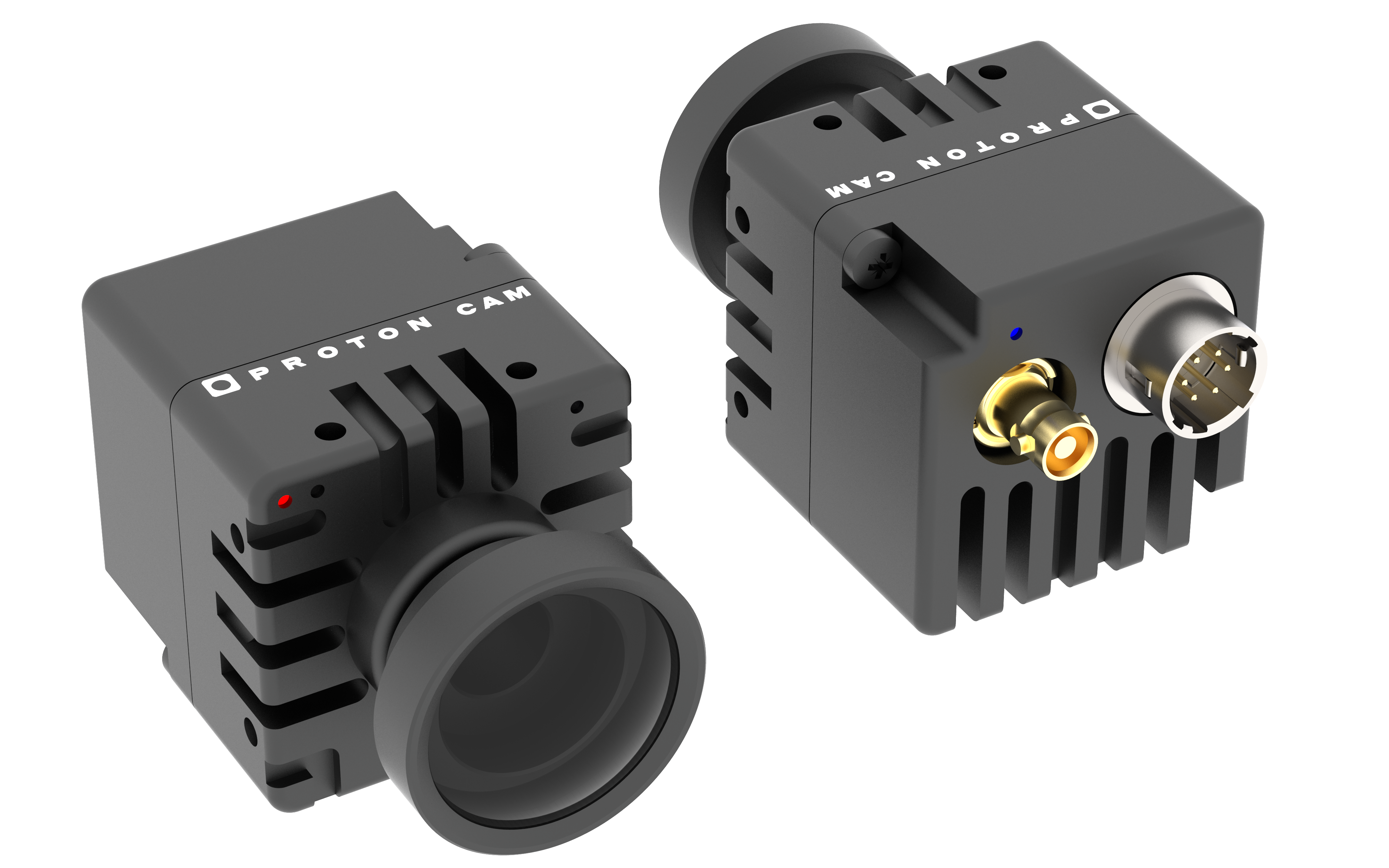

CAM CON​

Reference: PCI-CAM-CON — Connector version

SizeTBD
WeightTBD
ConnectorsHD-BNC & 6P Hirose (TBD)

All other specifications are identical to the standard CAM.

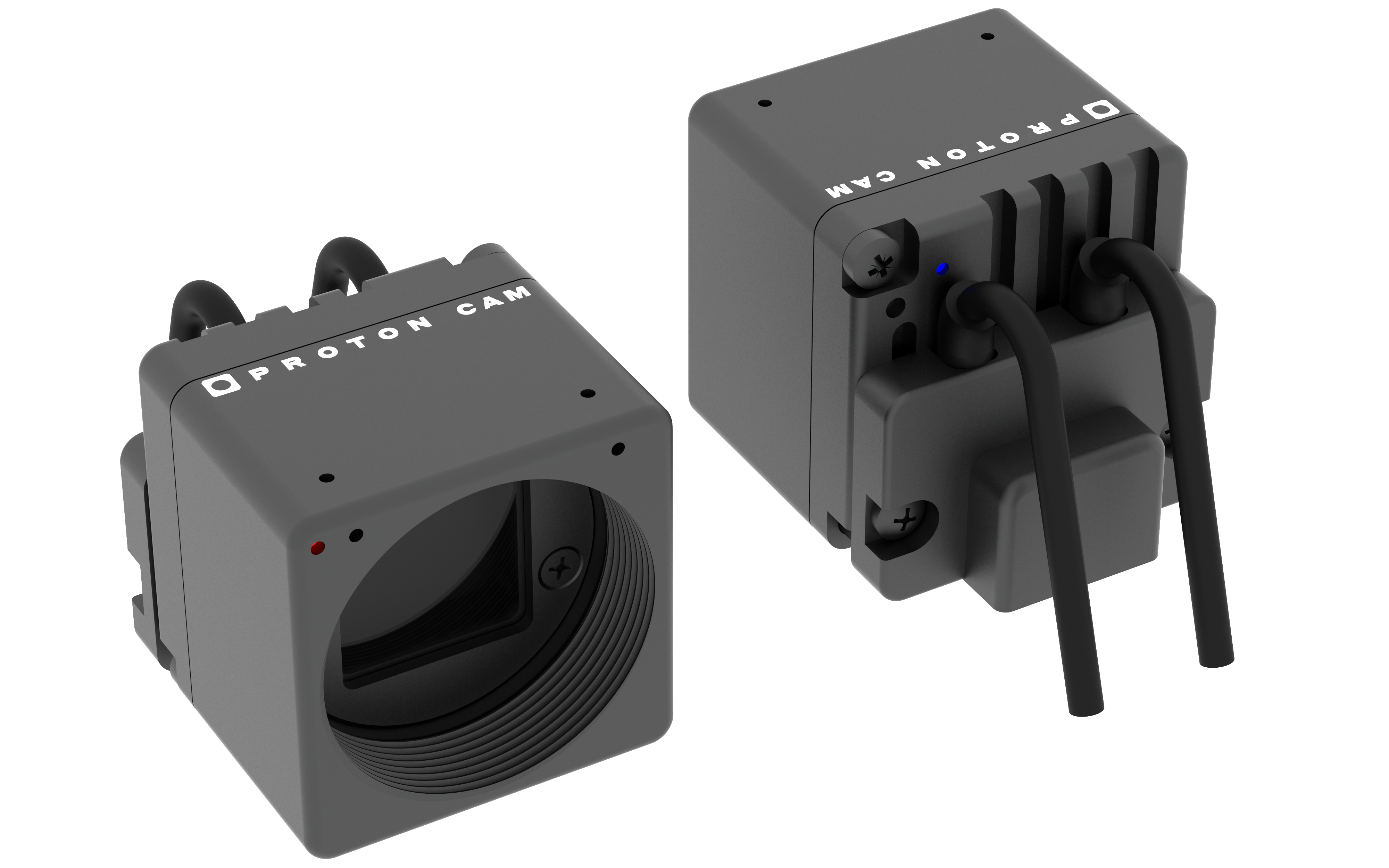

CAM CS​

Reference: PCI-CAM-CS — C/CS mount version

SizeTBD
WeightTBD
LensC/CS mount

All other specifications are identical to the standard CAM.

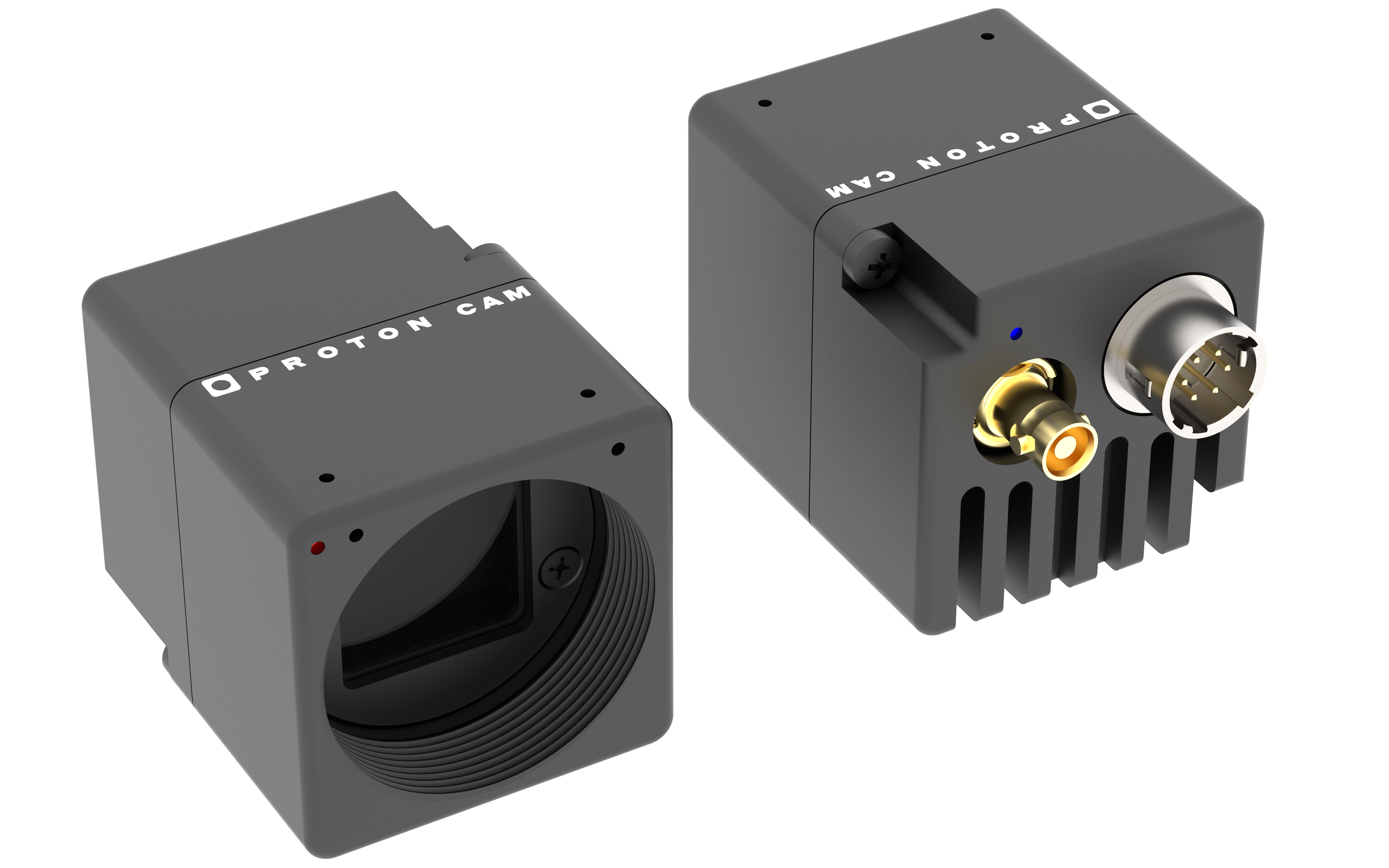

CAM CS CON​

Reference: PCI-CAM-CS-CON — C/CS mount + connector version

SizeTBD
WeightTBD
LensC/CS mount
ConnectorsHD-BNC & 6P Hirose (TBD)

All other specifications are identical to the standard CAM.

RAIN​

Reference: PCI-RAIN — Weatherproof (IP67) version

Size30x30x26mm
Weight39g
RatingIP673

All other specifications are identical to the standard CAM.

RAIN Manuals​

RAIN Mechanical​

Lenses​

Standard S-mount​

We offer a wide range of high quality S-mount lenses

ReferenceMountFFocalAnglePremium
PCI-LENS-22-22S-mountF/2.22.2mm124°
PCI-LENS-27-28S-mountF/2.82.7mm110°
PCI-LENS-30-20S-mountF/2.03mm121°✔
PCI-LENS-32-23S-mountF/2.33.2mm97°
PCI-LENS-39-28S-mountF/2.83.9mm88°
PCI-LENS-40-28S-mountF/2.84mm96°✔
PCI-LENS-42-19S-mountF/1.94.2mm85°
PCI-LENS-60-17S-mountF/1.76mm68°
PCI-LENS-78-20S-mountF/2.07.8mm52°
PCI-LENS-120-20S-mountF/2.012mm35°
Premium lenses

Premium lenses have higher-grade optics, with more glass elements, so they stay sharp across the whole image. On the other lenses, sharpness drops towards the edges.

If you use the Crop feature (2K cameras), prefer a premium lens: when you pan/tilt within the sensor, the edges of the image end up in the frame, and cropping magnifies any loss of sharpness.

RAIN S-mount​

We offer a range of high quality S-mount lenses designed specifically for the RAIN

ReferenceMountFFocalAnglePremium
PCI-LENS-22-22-RAINS-mountF/2.22.2mm124°
PCI-LENS-30-20-RAINS-mountF/2.03mm121°✔
PCI-LENS-32-23-RAINS-mountF/2.33.2mm97°
PCI-LENS-40-28-RAINS-mountF/2.84mm96°✔
PCI-LENS-60-17-RAINS-mountF/1.76mm68°
Premium lenses

Premium lenses have higher-grade optics, with more glass elements, so they stay sharp across the whole image. On the other lenses, sharpness drops towards the edges.

If you use the Crop feature (2K cameras), prefer a premium lens: when you pan/tilt within the sensor, the edges of the image end up in the frame, and cropping magnifies any loss of sharpness.

warning

These lenses are designed specifically for the RAIN. From an optical point of view, they're identical to their "normal lens" counterpart, but they're mechanically designed to keep the camera IP67

See the lenses page for installation, focus and shading instructions.

Downloads​

Manuals​

This page is an extract of these manuals, so make sure to check them out.

Packages​

ProductDownload linkPackage versionSOFT versionFPGA versionControl versionUpdater version
CAM/CAM CS/RAIN/FLEX/ZOOMdownload26.10.1v26.10.12.9v26.10.1v26.10.1
All versions
ProductDownload linkPackage versionSOFT versionFPGA versionControl versionUpdater version
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 11.1.01.2-1.0.1.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 2v1.1.1v1.2--
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 3v1.1.2v1.3--
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 4v1.2.0v1.5-1.2.0.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 5v1.3.0v1.81.0.0.01.2.1.1
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 6v1.3.1v1.81.1.0.01.2.1.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 7v1.3.2v1.91.1.1.01.2.2.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 8v1.4.0v1.121.2.0.01.2.2.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 9v1.4.1v1.121.2.0.01.2.2.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 10v1.4.2v1.121.2.0.01.2.4.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 11v1.5.0v1.151.3.2.01.2.5.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 12v1.5.1v1.151.4.2.01.2.7.1
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 131.6.02.11.4.3.01.2.7.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 141.6.12.11.4.3.11.2.7.2
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 151.7.02.41.5.0.01.2.9.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 161.7.12.41.5.1.11.3.0.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownloadPackage 171.7.12.41.5.2.01.3.1.0
CAM/CAM CS/RAIN/FLEX/ZOOMdownload26.10.1v26.10.12.9v26.10.1v26.10.1

See the firmware update page for upgrade instructions.

Mechanical​

Wires​

SDI​

Belden 179DT with male BNC plug

Male 6P Hirose​

Ref: HR10A-7P-6P

This cable provides: data and power.

Here is the pinout:

SignalPin
RS485 A/+1
RS485 B/-2
GND5
+12V6
warning

Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.
