Proton 4K 3D

Smallest stereoscopic 4K 3D camera.

Reference: PCI-4K-3D

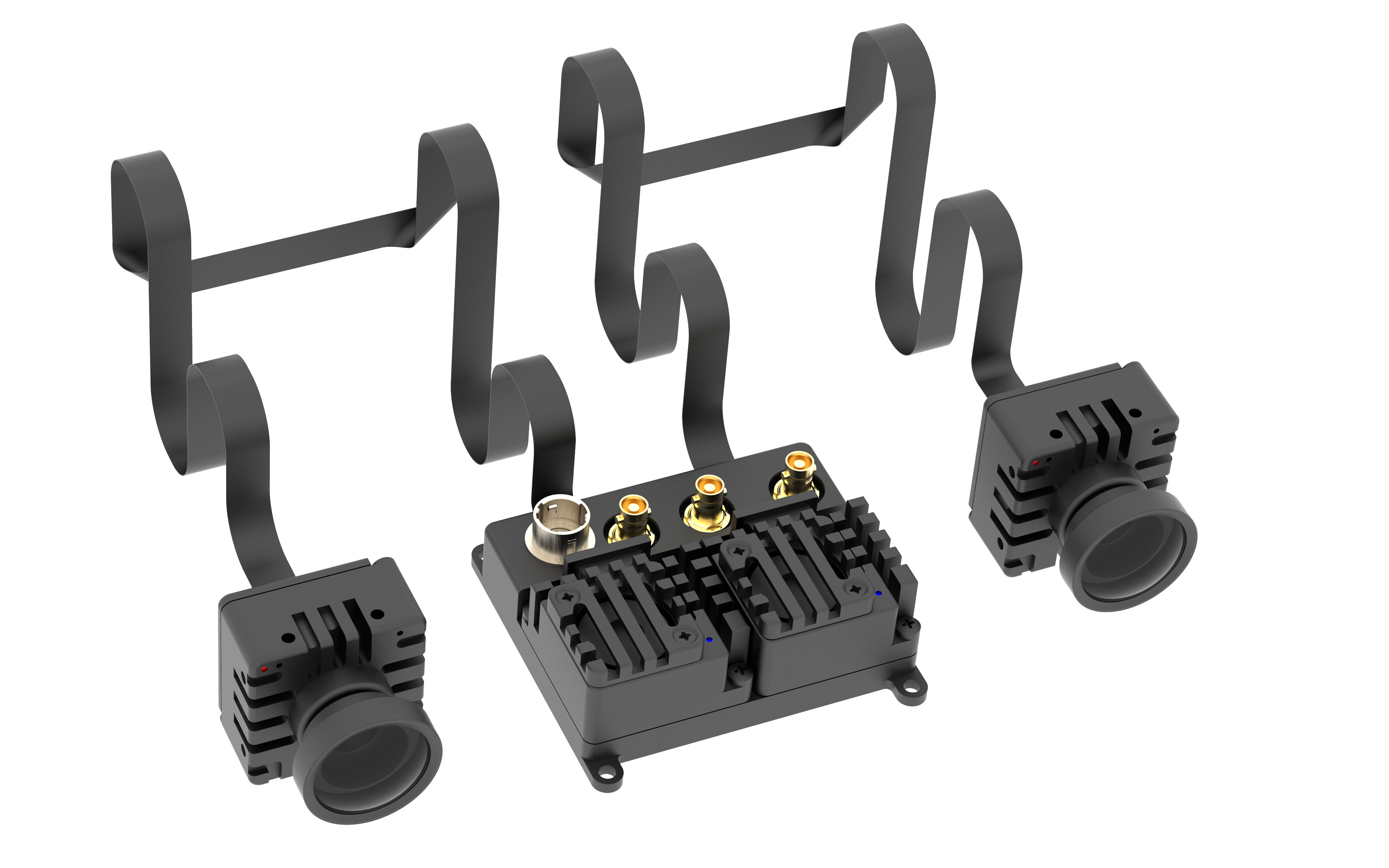

This camera features two synchronized camera heads connected to a single video processor, enabling stereoscopic 3D capture.

Specifications​

Head size28x28x19.5mm (x2)
Processor size56.5x54x22mm
WeightTBD
Voltage12-25V1
Power12W2
LensS-mount (x2)
Sensor8.8mm / 12bits (x2)
SDI outputs2x HD-BNC (SDI A + SDI B)
SyncHD-BNC (Proton Sync)
Power cable6P Hirose
Formatsup to 4Kp60

3D Synchronization​

Both camera heads are automatically synchronized by default (Master mode). The SYNC connector allows linking multiple 3D cameras together.

Three sync modes are available:

  • Off : cameras operate independently
  • Master (default) : self-sync + output sync signal
  • Slave : waits for external sync signal
warning

The sync signal is a proprietary PROTON format, not bi-level or tri-level. Converter boxes are available on request for tri-level sync infrastructure.

Camera IDs: A = ID 1, B = ID 2. Both are controllable together via broadcast group 0.

Lenses​

We offer a wide range of high quality S-mount lenses

ReferenceMountFFocalAnglePremium
PCI-LENS-22-22S-mountF/2.22.2mm124°
PCI-LENS-27-28S-mountF/2.82.7mm110°
PCI-LENS-30-20S-mountF/2.03mm121°✔
PCI-LENS-32-23S-mountF/2.33.2mm97°
PCI-LENS-39-28S-mountF/2.83.9mm88°
PCI-LENS-40-28S-mountF/2.84mm96°✔
PCI-LENS-42-19S-mountF/1.94.2mm85°
PCI-LENS-60-17S-mountF/1.76mm68°
PCI-LENS-78-20S-mountF/2.07.8mm52°
PCI-LENS-120-20S-mountF/2.012mm35°
Premium lenses

Premium lenses have higher-grade optics, with more glass elements, so they stay sharp across the whole image. On the other lenses, sharpness drops towards the edges.

If you use the Crop feature (2K cameras), prefer a premium lens: when you pan/tilt within the sensor, the edges of the image end up in the frame, and cropping magnifies any loss of sharpness.

See the lenses page for installation, focus and shading instructions.

Downloads​

Manuals​

This page is an extract of these manuals, so make sure to check them out.

Packages​

ProductDownload linkPackage versionSOFT versionFPGA versionControl versionUpdater version
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownload26.10.1v26.10.11.17v26.10.1v26.10.1
All versions
ProductDownload linkPackage versionSOFT versionFPGA versionControl versionUpdater version
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 11.3.21.41.1.1.01.2.2.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 2v1.4.0v1.71.2.0.01.2.2.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 3v1.4.2v1.71.2.0.01.2.4.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 4v1.5.0v1.101.3.2.01.2.5.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 5v1.5.1v1.101.4.2.01.2.7.1
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 6v1.6.1v1.121.4.3.11.2.7.2
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 71.7.01.151.5.0.01.2.9.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 81.7.11.151.5.1.11.3.0.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownloadPackage 91.7.11.151.5.2.01.3.1.0
4K/ZOOM/ZOOM RAIN/3D/FLEX/CSdownload26.10.1v26.10.11.17v26.10.1v26.10.1

See the firmware update page for upgrade instructions.

Wires​

SDI A & SDI B​

HD-BNC connectors (Amphenol 034-1028) carrying 12G SDI signal for each camera.

Sync​

HD-BNC connector for Proton Sync signal (proprietary format).

Male 6P Hirose​

Ref: HR10A-7R-6PB(73)

This cable provides: data and power.

Here is the pinout:

SignalPin
RS485 A/+1
RS485 B/-2
GND5
+12V6
warning

Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.

Footnotes​

  1. the camera HAS reverse polarity protection ↩

  2. 4Kp60 cold camera, ~10W cool, up to 12W hot, down to 9W at P24 ↩
