Proton 4K FLEX
Smallest 4K dual body camera.
Reference: PCI-4K-FLEX

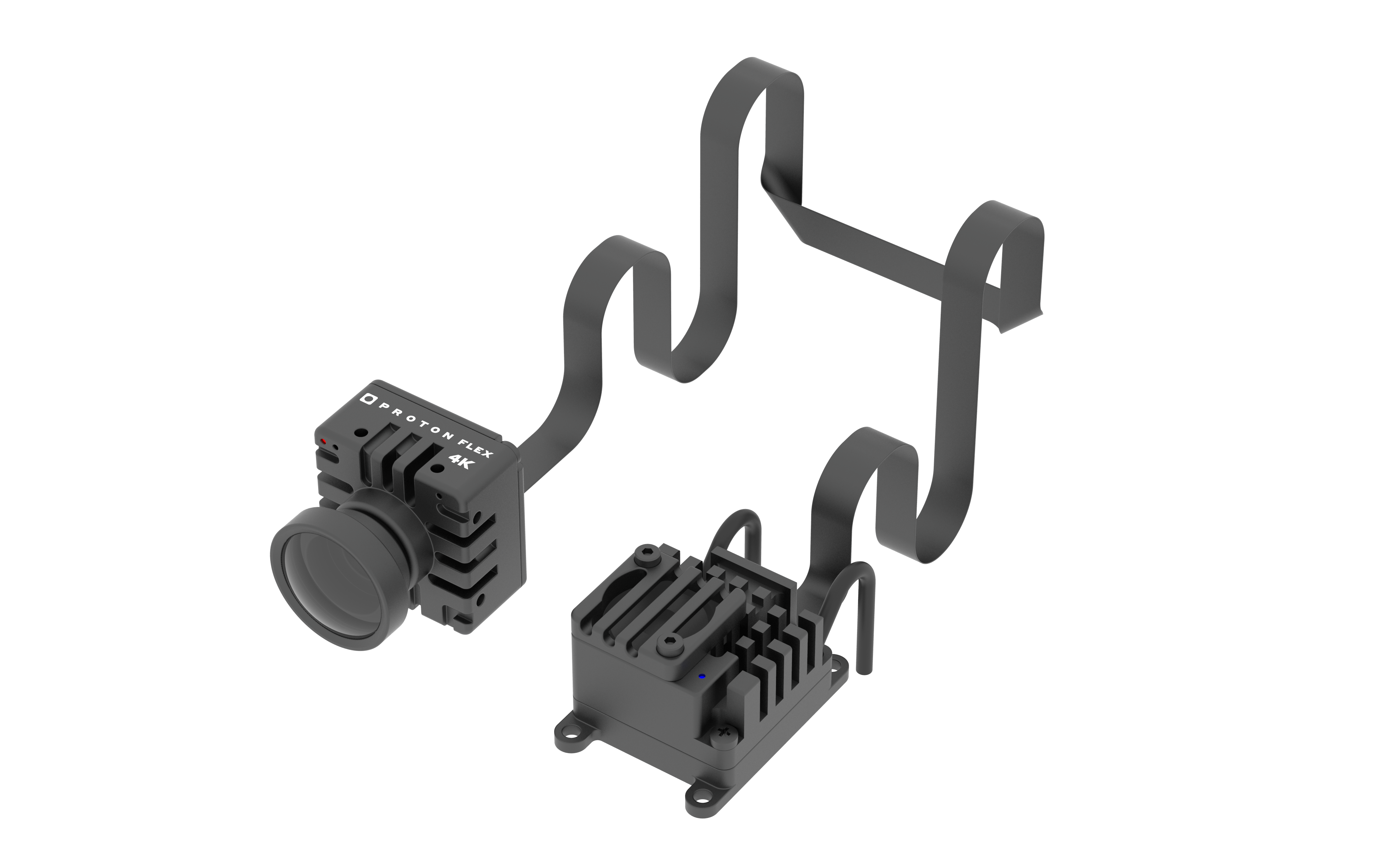

This camera is a Proton 4K but with split body:
- The sensor head (stays cold)
- The video processing unit (is warm)
They are separated by a ribbon, up to 30cm.
Specifications
| Head size | 28x28x19.5mm |
| Processor size | 56.5x54x22mm |
| Weight | TBD |
| Voltage | 12-25V1 |
| Power | 6W2 |
| Lens | S-mount |
| Sensor | 8.8mm / 12bits |
| Cables | M-BNC & 6P Hirose |
| Formats | up to 4Kp60 |
Lenses
We offer a wide range of high quality S-mount lenses
| Reference | Mount | F | Focal | Angle | Premium |
|---|---|---|---|---|---|
| PCI-LENS-22-22 | S-mount | F/2.2 | 2.2mm | 124° | |
| PCI-LENS-27-28 | S-mount | F/2.8 | 2.7mm | 110° | |
| PCI-LENS-30-20 | S-mount | F/2.0 | 3mm | 121° | ✔ |
| PCI-LENS-32-23 | S-mount | F/2.3 | 3.2mm | 97° | |
| PCI-LENS-39-28 | S-mount | F/2.8 | 3.9mm | 88° | |
| PCI-LENS-40-28 | S-mount | F/2.8 | 4mm | 96° | ✔ |
| PCI-LENS-42-19 | S-mount | F/1.9 | 4.2mm | 85° | |
| PCI-LENS-60-17 | S-mount | F/1.7 | 6mm | 68° | |
| PCI-LENS-78-20 | S-mount | F/2.0 | 7.8mm | 52° | |
| PCI-LENS-120-20 | S-mount | F/2.0 | 12mm | 35° |
Premium lenses have higher-grade optics, with more glass elements, so they stay sharp across the whole image. On the other lenses, sharpness drops towards the edges.
If you use the Crop feature (2K cameras), prefer a premium lens: when you pan/tilt within the sensor, the edges of the image end up in the frame, and cropping magnifies any loss of sharpness.
See the lenses page for installation, focus and shading instructions.
Downloads
Manuals
This page is an extract of these manuals, so make sure to check them out.
Packages
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 26.10.1 | v26.10.1 | 1.17 | v26.10.1 | v26.10.1 |
All versions
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 1 | 1.3.2 | 1.4 | 1.1.1.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 2 | v1.4.0 | v1.7 | 1.2.0.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 3 | v1.4.2 | v1.7 | 1.2.0.0 | 1.2.4.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 4 | v1.5.0 | v1.10 | 1.3.2.0 | 1.2.5.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 5 | v1.5.1 | v1.10 | 1.4.2.0 | 1.2.7.1 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 6 | v1.6.1 | v1.12 | 1.4.3.1 | 1.2.7.2 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 7 | 1.7.0 | 1.15 | 1.5.0.0 | 1.2.9.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 8 | 1.7.1 | 1.15 | 1.5.1.1 | 1.3.0.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | Package 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 26.10.1 | v26.10.1 | 1.17 | v26.10.1 | v26.10.1 |
See the firmware update page for upgrade instructions.
Wires
SDI
Belden 179DT with male BNC plug
Male 6P Hirose
Ref: HR10A-7P-6P
This cable provides: data and power.
Here is the pinout:
| Signal | Pin |
|---|---|
| RS485 A/+ | 1 |
| RS485 B/- | 2 |
| GND | 5 |
| +12V | 6 |
Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.
